The kitchen sink drain takes more daily abuse than any other plumbing fixture in a building. Every time you dump a pot of boiling pasta water or rinse out a greasy cast-iron skillet, you subject the pipes to extreme thermal shock and viscous waste. Pouring boiling water down the sink causes rapid thermal expansion, which easily warps cheap tubular plastics and compromises mechanical joints. Minutes later, cold water and liquid grease follow. As the grease hits the cooler pipe walls, it coagulates, coating the interior and creating a sticky matrix that traps food particles. This cycle inevitably leads to catastrophic clogs, blown joints, and severe water damage inside the cabinetry. Preventing these failures requires abandoning standard builder-grade plastics. You must evaluate and select drainage materials based on their thermal tolerance, chemical resistance, and structural integrity to build a system that actually survives daily kitchen operations.
Thermal Tolerance is Non-Negotiable: Standard tubular polypropylene (slip-joint plastic) is highly susceptible to warping under boiling water; Schedule 40 PVC or metallic piping offers superior thermal stability.
Grease Adhesion Varies by Material: Smooth-walled materials like PVC and ABS resist grease buildup better than rougher cast iron, but require proper slope and water velocity to prevent coagulation.
Component Quality Dictates System Lifespan: Upgrading to a stainless steel sink drain strainer and utilizing a brass drain valve or high-grade tailpiece prevents the most common points of failure at the sink connection.
Installation Method Impacts Durability: Solid-glued solvent-welded plastics or sweated copper joints provide permanent, leak-proof seals compared to threaded slip-joints, which loosen over time due to thermal expansion and contraction.
Understanding why kitchen plumbing fails requires looking at the physical forces acting on the pipes. Alternating between boiling water and ice-cold rinses causes plumbing materials to expand and contract rapidly. This thermal cycling places immense stress on mechanical joints, slip-nuts, and rubber gaskets. When a material expands under heat and contracts as it cools, threaded connections slowly back off their original torque. Over months of daily use, this movement loosens the fittings, allowing water to seep through. Rigid plastics that lack the proper thickness will warp, permanently losing their shape and compromising the seal at the P-trap or wall connection.
Fats, oils, and grease (FOG) present a completely different mechanical challenge. Grease enters the drain as a hot liquid but rapidly transitions to a solid state as it travels away from the heat source and hits cooler pipe sections. The surface friction of the pipe material heavily influences this buildup. Rougher interior walls, like those found in older cast iron or degraded plastics, catch small food particles. These particles act as anchor points. As liquid grease flows over them, it cools and sticks, creating a solid mass. Once this coagulation begins, it exponentially reduces the internal diameter of the pipe, restricting flow and leading to a hard clog that standard plunging cannot clear.
Hydraulic velocity plays a massive role in keeping pipes clear. Inadequate venting slows down the drain velocity significantly. If a system lacks a proper atmospheric vent or a functioning Air Admittance Valve (AAV), draining water creates a vacuum behind it. This vacuum pulls against the water, slowing it down. Slow-moving water allows hot liquid grease to cool rapidly and settle on the bottom of the pipe instead of being carried out to the main sewer line. Fast, unrestricted water flow is the primary defense against grease accumulation.
Chemical degradation also destroys drainage systems from the inside out. When drains run slow, the immediate reaction is often to pour harsh, caustic chemical drain cleaners down the sink. These chemicals generate intense localized heat to melt grease, but they also attack the pipe materials. Frequent exposure to caustic cleaners eats away at rubber gaskets, degrades the structural integrity of thin-walled plastics, and accelerates corrosion in inferior metals. Building a resilient system means selecting materials that can withstand both the physical abuse of daily use and the chemical abuse of occasional clearing attempts.
Failure Mechanism | Primary Cause | Impact on Plumbing System | Prevention Strategy |
|---|---|---|---|
Thermal Warping | Boiling water on thin plastics | Deformed pipes, blown slip-joints, active leaks | Use Schedule 40 PVC or metal piping |
Grease Coagulation | Slow water velocity, rough pipe walls | Hard blockages, reduced pipe diameter | Ensure proper venting and 1/4-inch slope |
Joint Loosening | Expansion/contraction cycles | Slow drips under the sink cabinet | Utilize solvent-welded or soldered joints |
Chemical Degradation | Caustic drain cleaners | Rotted gaskets, weakened pipe walls | Install chemical-resistant materials (PVC/Brass) |
Schedule 40 PVC and ABS are the workhorses of modern residential plumbing. Their primary advantage in a kitchen setting is their exceptionally smooth interior walls. This low-friction surface makes it very difficult for grease and food particles to adhere, provided the pipe has the correct slope. Furthermore, the rigid, thick-walled structure of Schedule 40 pipe withstands significant physical impacts. If you bump the pipes while storing heavy pots under the sink, Schedule 40 will not dent or crack like thinner materials.
However, you must respect their thermal limits. Standard Schedule 40 PVC carries a maximum working temperature rating of 140°F. Boiling water hits the drain at 212°F. While a quick pour of boiling water won't instantly melt a PVC pipe, prolonged or frequent exposure will soften the plastic, causing it to sag between supports or deform at the joints. CPVC (Chlorinated Polyvinyl Chloride) offers a higher temperature threshold of 200°F, making it a more resilient option for high-heat applications. Regardless of the plastic used, standard field practice dictates running cold water simultaneously when draining boiling liquids to rapidly drop the wastewater temperature.
The true strength of PVC and ABS lies in the installation method. Solid-glued, solvent-welded joints provide unmatched reliability. Unlike mechanical compression fittings that rely on a rubber gasket and a threaded nut, solvent welding uses a chemical primer and cement to literally melt the two pieces of plastic together. Once cured, the joint becomes a single, continuous piece of plastic. This permanent bond is impervious to the thermal expansion and contraction cycles that cause slip-joints to fail, ensuring a leak-proof system for decades.
When thermal stability is the absolute highest priority, copper and brass drain lines are the undisputed standard. These metals will not warp, melt, or deform under any residential or commercial hot water application. You can dump massive commercial steam kettles of boiling water directly into a brass or copper drainage system without a second thought. They provide a permanent, structurally rigid solution that completely eliminates the risk of thermal deformation.
The trade-off with metal piping involves its thermal conductivity. Metal absorbs and dissipates heat much faster than plastic. When hot, grease-laden water travels through a copper pipe, the pipe pulls the heat out of the water rapidly. This rapid cooling effect can cause grease to solidify faster than it would in an insulated plastic pipe. To counteract this, metallic systems require a higher volume of hot water to keep the pipe walls warm enough to push the grease entirely through the branch lines and into the main sewer stack.
Implementing a metallic drainage system requires professional skills. Sweating (soldering) copper joints involves open flames, flux, and precise heat control to draw the solder into the fitting via capillary action. This creates a permanent, leak-proof seal, but it is not a DIY-friendly task. The initial material costs for copper and brass are significantly higher than plastic, and the labor required to install them correctly adds to the upfront investment. However, in high-volume or commercial environments, this investment pays off by eliminating heat-related plumbing failures.
If you walk into any big-box hardware store and buy a bagged P-trap kit, you are likely purchasing tubular polypropylene. This thin-walled plastic is incredibly common because it is cheap, lightweight, and easy to cut with a hacksaw. It utilizes slip-joint connections with plastic nuts and beveled washers, allowing for quick, adjustable installations without any specialized tools or toxic glues.
Despite its convenience, tubular plastic is the worst possible material for a heavily used kitchen sink. It lacks the structural integrity required to handle the physical and thermal stress of a busy kitchen. The thin walls offer almost no resistance to thermal warping. When subjected to boiling water, the pipe softens and distorts. The plastic slip-nuts expand, and the threads frequently strip or jump track under pressure. As the pipe cools, the deformed joints no longer hold a watertight seal, leading to persistent leaks. For any long-term, durable installation, you must avoid tubular plastic entirely and upgrade to rigid Schedule 40 or metallic piping.

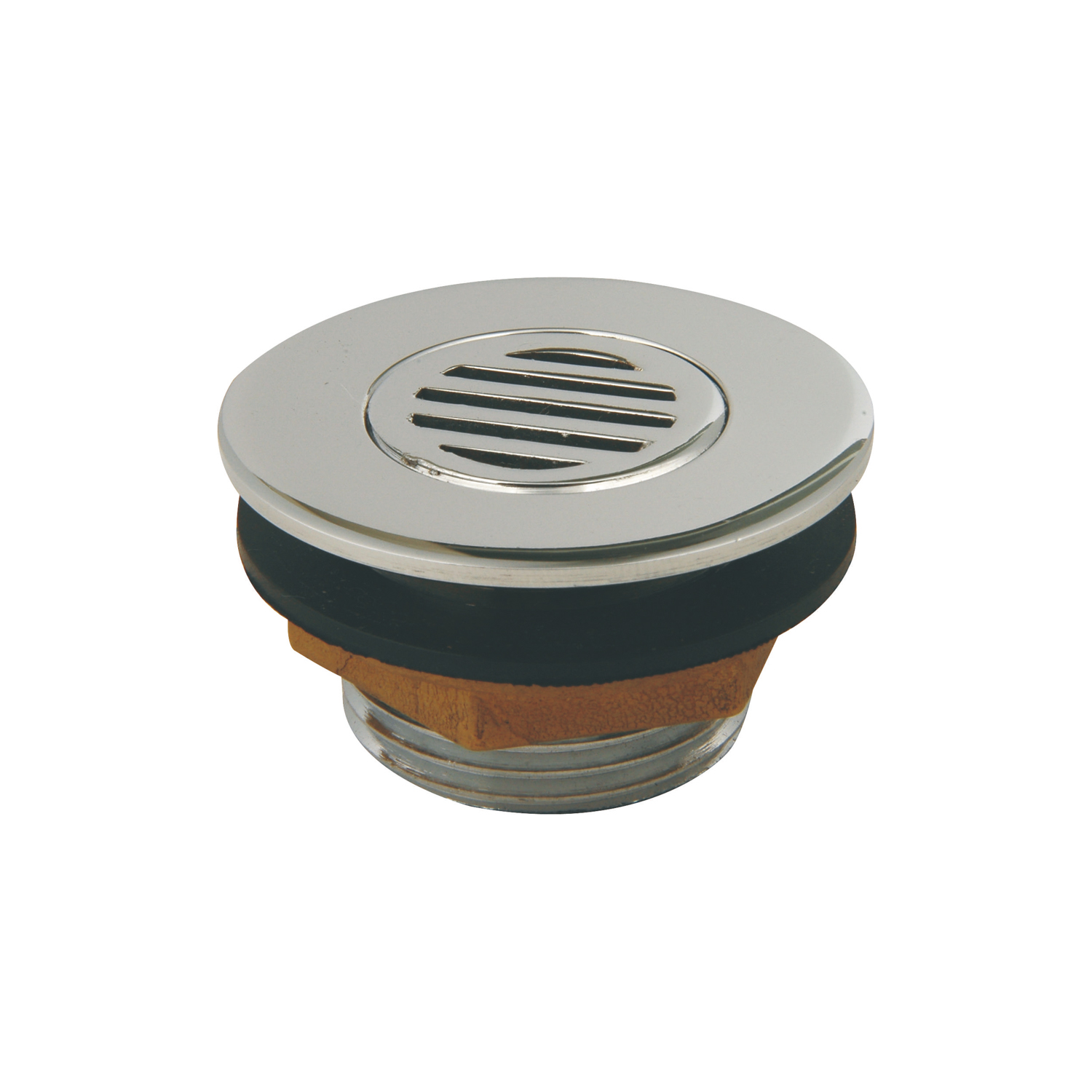

The first line of defense for your entire plumbing system sits right at the bottom of the sink basin. Material selection here is critical because this component sits in standing water and is constantly exposed to acidic food waste, salt, and abrasive cleaners. You must insist on T304 or T316 stainless steel. Cheaper metals, even those with chrome plating, will eventually pit, rust, and corrode. A heavy-duty sink drain strainer maintains its structural integrity and finish, protecting the downstream pipes from damaging debris.
Design efficacy matters just as much as the material. Standard flat slotted strainers are largely ineffective. They allow rice, coffee grounds, and small food scraps to wash right past the flange. When these solids enter the P-trap, they mix with cooling grease to form a dense, impenetrable blockage. Deep-basket strainer designs are vastly superior. They feature a removable, perforated cup that captures fine particles while still allowing water to flow freely around the debris. Emptying a deep basket into the trash is the single most effective way to reduce the frequency of kitchen clogs.
The connection between the sink basin and the drainage plumbing relies entirely on the locknut securing the flange from underneath. Heavy-duty solid brass locknuts provide the necessary clamping force to maintain a watertight seal. Many budget strainers include cheap die-cast zinc or plastic locknuts. When you attempt to tighten these inferior nuts with a spud wrench, they often crack or warp, making it impossible to achieve proper compression on the rubber gasket.
Thermal loosening is a major issue with inferior mounting hardware. When you pour boiling water into the sink, the metal flange expands. The locknut and the sink basin also expand, but at different rates. When the system cools, cheap plastic or zinc locknuts fail to return to their original tension. This micro-movement eventually breaks the seal of the plumber's putty or silicone above, resulting in a slow, persistent drip that ruins the floor of your sink cabinet.
The highest temperatures in the entire drainage system occur immediately beneath the sink flange, right where the water exits the basin. Integrating a brass drain valve or a solid brass tailpiece at this exact location is a highly effective design strategy. Brass absorbs this initial, brutal thermal shock without deforming. By taking the brunt of the heat, the brass component acts as a thermal buffer, slightly cooling the water before it hits the plastic P-trap downstream.
Beyond thermal buffering, brass offers exceptional mechanical durability. The threads on a brass tailpiece will not strip or cross-thread, even when subjected to heavy torque during installation. If you need to remove the P-trap for maintenance, the brass threads remain intact and ready for reassembly. Plastic tailpieces, on the other hand, frequently crack at the flanged top or suffer thread damage after just one or two maintenance cycles. Upgrading this single component drastically improves the overall reliability of the sink connection.
The seals that keep water inside the pipes are just as important as the pipes themselves. Standard black rubber gaskets are notorious for failing in kitchen applications. The combination of high heat from boiling water and harsh chemicals from dish soap and drain cleaners causes cheap rubber to dry out, lose its elasticity, and crack. High-grade silicone seals are the professional choice. Silicone maintains its flexibility across extreme temperature ranges and resists chemical degradation, ensuring a tight seal that lasts for years.
When seating the strainer flange into the sink basin, you must choose between traditional plumber's putty and modern silicone caulk. Plumber's putty is easy to work with but can dry out and crack over time, especially on sinks that experience heavy thermal cycling. Silicone caulk provides a permanent, flexible, waterproof bond. It is particularly necessary for porous materials like fireclay or composite sinks, where putty might stain the finish or fail to adhere properly.
The material of the sink itself dictates how the gaskets perform. Heavy undermount fireclay or cast-iron sinks have significant mass. They absorb heat differently and shift slightly under thermal expansion. Thin-rimmed stainless steel sinks flex when filled with heavy pots of water. You must utilize flexible silicone sealants and high-quality rubber friction rings to accommodate these micro-movements. If the sealant is too rigid, the flexing of the sink will break the watertight bond, causing top-down leaks.
A perfectly sloped pipe is useless without proper venting. Venting provides the atmospheric pressure necessary to push water through the pipes quickly. When roughing in kitchen plumbing, you must ensure the trap arm connects to a properly sized vent stack. If traditional atmospheric venting through the roof is impossible (such as in a kitchen island), you must install a high-quality Air Admittance Valve (AAV) as high up in the cabinet as possible. The AAV opens to let air in when water drains, preventing a vacuum lock, and snaps shut to keep sewer gases out. Fast water velocity, enabled by good venting, is the only way to flush grease out of the branch lines before it solidifies.
The choice between a solid-glued Schedule 40 PVC layout and a slip-joint system defines the longevity of the installation. Solid-glued systems require precise measuring, cutting, and dry-fitting before applying the solvent cement. Once glued, the system cannot be adjusted. However, this rigid, permanent layout offers unparalleled leak resistance. Slip-joint systems, while adjustable and forgiving during installation, introduce multiple mechanical failure points. Every slip-nut is a potential leak waiting to happen under thermal stress. For a durable kitchen, solid-glued PVC from the wall out to a single slip-joint at the trap weir is the optimal configuration.
Evaluating plumbing materials requires looking past the initial purchase price. Cheap tubular plastic kits cost very little upfront, but they carry a massive risk of failure. A single blown slip-joint can cause thousands of dollars in water damage to custom cabinetry and hardwood floors. Copper, brass, and Schedule 40 PVC require a higher initial investment in both materials and labor. However, these robust materials offer decades of reliable service. Investing in heavy-duty components at the outset prevents expensive emergency repairs and water mitigation down the road.
The ease of installation varies wildly between materials. Slip-joint tubular plastic is heavily marketed to homeowners because it requires no special tools—just a pair of channel-lock pliers and a hacksaw. Solvent welding PVC or ABS requires a deeper understanding of pipe slope, careful measuring, and the fast application of toxic primers and cements. Soldering copper is a specialized trade skill requiring a torch, flux, solder, and an understanding of heat control to avoid burning the house down. While DIY slip-joints are tempting, professional installation of rigid, permanent systems yields vastly superior results.
Regardless of your material preferences, local plumbing codes dictate exactly what you can and cannot install. The Uniform Plumbing Code (UPC) and the International Plumbing Code (IPC) set strict standards for trap sizes, allowable pipe materials, and venting requirements. For example, many jurisdictions prohibit the use of corrugated flexible drain pipes or require specific distances between the trap weir and the vent connection. You must always consult your local code enforcement office or a licensed plumber to ensure your drainage design meets all legal and safety requirements.
The physics of drainage rely entirely on gravity and slope. Maintaining a precise 1/4-inch per foot slope on all horizontal drain lines is critical. If the slope is too shallow, the water moves too slowly, allowing grease to settle and solids to drop out of suspension. If the slope is too steep, the water rushes past the solids, leaving them behind to rot and form clogs. A perfect 1/4-inch slope ensures the water maintains enough velocity to carry both heavy solids and liquid grease completely through the system before the grease has time to cool and solidify on the pipe walls.
Even the best plumbing system requires proper user habits to survive. The most important operational rule is to run cold water simultaneously whenever you drain boiling water. This simple habit instantly lowers the temperature of the wastewater, protecting PVC pipes from thermal deformation and preventing brass components from becoming dangerously hot. Additionally, you must strictly utilize a deep-basket strainer. Scrape all plates into the trash before rinsing, and never intentionally pour liquid cooking grease down the drain. Wipe greasy pans with a paper towel before washing them to keep the grease matrix out of your plumbing entirely.
Selecting the right materials for your kitchen drainage system prevents catastrophic leaks and stubborn clogs. For the main drain lines, Schedule 40 PVC offers the best balance of smooth walls for grease management and structural stability, provided you manage boiling water exposure. For premium or commercial setups, copper and brass remain unmatched for heat resistance. Upgrading the immediate sink connections with heavy-duty components ensures the system survives daily thermal shock.
Inspect your current under-sink plumbing immediately and replace any warped, discolored, or thin tubular plastic with rigid Schedule 40 PVC.
Upgrade your standard flat sink strainer to a deep-basket stainless steel model to capture fine food particles before they enter the P-trap.
Install a solid brass tailpiece or valve directly beneath the sink flange to absorb the initial thermal shock of boiling water.
Adopt the habit of running cold water at full volume whenever you pour boiling liquids down the drain to protect your plastic pipes.
Consult a licensed plumber to evaluate your venting system and ensure your drain lines maintain a proper 1/4-inch per foot slope.
A: Schedule 40 PVC is the best all-around material for residential kitchens. It offers smooth interior walls that resist grease buildup and strong, solvent-welded joints that won't leak. For commercial kitchens handling extreme heat, copper or brass is superior due to its unmatched thermal stability.
A: Boiling water (212°F) exceeds the maximum temperature rating of standard PVC (140°F). While it won't instantly melt the pipe into a puddle, frequent exposure will cause the plastic to warp, soften, and eventually leak at the joints. Always run cold water when draining boiling liquids.
A: Never pour liquid grease down the drain. Wipe greasy pans with a paper towel before washing. Ensure your pipes have a proper 1/4-inch per foot slope to maintain water velocity. Use a high-quality deep-basket strainer to catch food particles that can bind with residual grease.
A: Yes. Brass handles extreme thermal expansion without warping or cracking. Its threads are highly durable and resist cross-threading during installation. A brass valve placed directly under the sink absorbs the highest heat, acting as a thermal buffer to protect the downstream plastic pipes.
A: A deep-basket stainless steel strainer catches the most debris. Unlike flat slotted strainers, the deep basket traps fine particles while still allowing water to flow freely around the waste. Stainless steel prevents rust and corrosion from acidic food waste and harsh cleaners.
A: Thin tubular plastic expands when heated by hot water and contracts as it cools. This constant thermal cycling loosens the threaded slip-joint nuts over time. Replacing the slip-joints with solid-glued Schedule 40 PVC or upgrading to heavy-duty nuts and silicone gaskets will stop the leaks.
A: Proper venting prevents a vacuum from forming inside the pipes. Without venting, water drains slowly, gurgling as it fights for air. Slow-moving water allows hot liquid grease to cool and solidify on the pipe walls. Good venting ensures fast water velocity to flush grease away.
