Poorly coordinated hardware exerts a disproportionate impact on project timelines, budgets, and final aesthetics. You often find that hardware accounts for a staggering percentage of punch-list issues and change orders on commercial and high-end residential builds. When millwork, access control, and general construction operate in silos, the results are predictable and costly. Mismatched finishes, incompatible electrified systems, and ergonomic failures disrupt the design intent and frustrate end-users.
Addressing this requires breaking down the barriers between trades on the job site. Specifying cabinets, security systems, and doors separately creates massive gaps in functionality. We need a systematic framework to evaluate, specify, and digitally model a unified hardware package from day one. This approach bridges the gap between your design intent and functional reality, ensuring that what looks good on paper actually works in the field.
Systematic Specification: Treating door hardware and furniture hardware as an integrated system—rather than isolated components—prevents aesthetic clashes and ensures functional continuity.
Digital Coordination is Non-Negotiable: Utilizing BIM and CAD tools to model custom hardware placement early mitigates physical clashes and generates accurate hardware schedules.
Electrified Hardware Requires Early Alignment: Vestibules and access-controlled entryways demand precise coordination between primary and secondary doors to avoid security vulnerabilities and egress compliance failures.
Vendor Consolidation vs. Specialization: Balancing single-source architectural hardware procurement against best-in-breed selection requires evaluating finish durability, warranty terms, and lead-time risks.
Defining a successful hardware package requires looking far beyond visual appeal. Visual consistency of finishes matters, but it must align with ADA compliance, seamless access control integration, and lifecycle durability. A truly successful specification ensures every handle, lock, and pull works together flawlessly under heavy daily use. You must evaluate how these components perform under daily stress, considering factors like lateral sheer force on door pulls and the repetitive impact on latch bolts. When we look at a building's operational lifespan, the hardware is the most frequently touched element. If it fails, the user experience degrades immediately. Therefore, success means zero physical clashes, zero code violations during inspection, and zero finish degradation within the first five years of occupancy.
To achieve this, architects and specifiers must adopt a rigorous evaluation matrix. We cannot simply pick a lever because it looks sleek. We have to ask: Will this lever return to within a half-inch of the door face to meet fire code? Does the rosette cover the standard ANSI prep? Will the finish hold up to industrial cleaning agents used by the facility management team? Answering these questions early prevents costly change orders when the fire marshal walks the site.

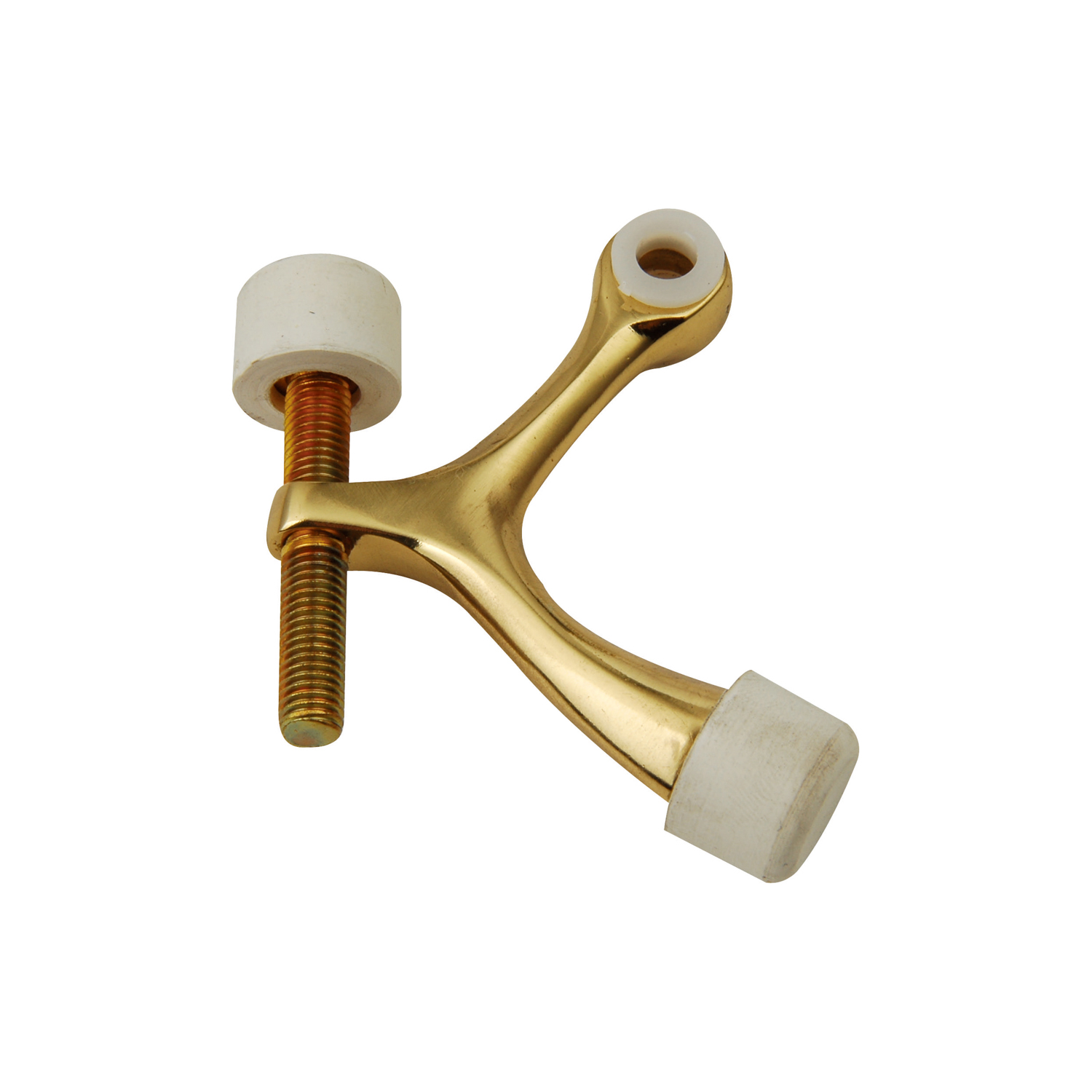

You need to break down the distinct categories requiring coordination to avoid overwhelming the specification process. Start with primary egress and entry points. These are your heavy-duty, high-traffic zones that dictate the security and life-safety baseline. Move to interior passage doors, which require less robust locking mechanisms but demand higher aesthetic consistency. Next, evaluate millwork and cabinetry, where the scale shifts dramatically, and ergonomic considerations change. Finally, consider wall-mounted accessories like handrails, door stops, and washroom fixtures.
Categorizing these elements allows you to apply specific performance criteria to each zone. For instance, a primary exterior door requires Grade 1 hardware, weatherstripping, and likely electrified access control. An interior office door might only need Grade 2 hardware and a simple passage latch. By segmenting the project, you can allocate the budget effectively, spending money on high-abuse areas while economizing on low-traffic zones without sacrificing the overall design language.
Treat every functional opening as a micro-system. This means evaluating door geometry, construction, finish, hardware, installation, and maintenance simultaneously. You cannot look at a handle in isolation. Neglecting one part of this micro-system leads to failure. For example, ignoring door material thickness can cause catastrophic structural failure of high-use Architectural Hardware. If you specify a heavy mortise lock on a hollow core door without proper wood blocking, the lock will eventually rip out of the door face.
This methodology extends to cabinetry. A heavy integrated refrigerator panel requires a pull that can withstand significant suction force. If you specify a standard cabinet pull attached with standard screws, the user will pull the hardware right off the panel. You must evaluate the substrate, the fastener type, the hardware material, and the user's leverage point as one cohesive unit. When we view openings as small systems, we catch these mechanical incompatibilities during the design phase, long before the carpenter starts drilling holes on site.
Specifying electrified hardware involves significant complexity and requires tight coordination with the electrical engineer and security consultant. Vestibule conditions are particularly challenging. Primary and secondary doors must operate in sequence to maintain security and climate control. A common pitfall occurs when architects show access control on the primary door but assume the secondary door will automatically follow suit. You must specify distinct wiring transfers, power supplies, and logic relays for both doors to ensure security and functionality.
Consider the difference between fail-safe and fail-secure locking mechanisms. Fail-safe locks unlock when power is removed, ensuring safe egress during a fire alarm. Fail-secure locks remain locked when power is lost, protecting high-value assets. You must map these requirements to the building code and the client's security protocols. Furthermore, coordinating the power transfer from the frame to the door leaf requires selecting the right hardware—whether that is an electrified hinge, a power transfer loop, or a concealed transfer device. If the frame prep doesn't match the transfer device, the installer will be forced to modify the frame on site, voiding the fire rating.
Verify the access control narrative with the security consultant.
Select the appropriate locking hardware (e.g., electrified mortise, electric strike, or maglock).
Determine the power transfer method and ensure frame compatibility.
Coordinate power supply locations and voltage requirements with the electrical engineer.
Review the fire alarm matrix to ensure proper integration for emergency egress.
Regulatory dimensions dictate how you evaluate Door Hardware. Operational force limits must remain under 5 lbs for interior doors. You must also consider tactile warnings, graspability, and mounting height standards. Map specific features like lever returns and panic bars directly to life-safety outcomes. Building code compliance is non-negotiable, and your hardware choices must reflect these strict requirements.
For example, levers must be operable with one hand and not require tight grasping, pinching, or twisting of the wrist. The hardware must be mounted between 34 and 48 inches above the finished floor. Thresholds cannot exceed a half-inch in height and must be beveled. When specifying closers, you must ensure the sweep period allows enough time for a person with mobility issues to pass through the opening. Failing to coordinate these details results in failed inspections and immediate rework.
Evaluate hardware based on expected facility traffic and lifecycle scalability. Choosing the right grade prevents premature failure and reduces maintenance calls. Always match the durability of the hardware to the specific demands of the environment. A high school corridor requires vastly different hardware than a boutique hotel room.
ANSI/BHMA Grade | Application | Cycle Testing Requirement | Typical Use Cases |
|---|---|---|---|
Grade 1 | Heavy Duty Commercial | 1,000,000 cycles | Hospitals, Schools, Exterior Public Entrances |
Grade 2 | Standard Duty Commercial | 400,000 cycles | Offices, Hotel Rooms, Interior Commercial Doors |
Grade 3 | Residential | 200,000 cycles | Single-Family Homes, Low-Traffic Residential |
Establish technical guidelines for hardware placement based on user ergonomics. Optimal pull height for heavy appliance panels differs from standard cabinets. Integrated refrigerators require substantial leverage because of the heavy magnetic gaskets. Dishwashers usually need horizontal centering for balanced operation. Weigh the trade-offs between oversized appliance pulls and standard handles. Undersized pulls on high-suction appliance gaskets risk cabinet door warp or complete failure.
When detailing millwork, you must specify the exact mounting locations. For base cabinets, pulls are typically mounted on the top rail of the door. For upper cabinets, they are mounted on the bottom rail. However, when dealing with full-height pantry doors, you must center the pull at a comfortable ergonomic height, usually around 40 to 42 inches from the floor. If you leave these decisions to the cabinet installer, you will end up with inconsistent placement that ruins the visual rhythm of the space.
Match or intentionally contrast finishes between heavy-duty door components and lighter Furniture Hardware. Cross-vendor finish matching presents severe limitations. Variations in "Satin Brass" or "Oil Rubbed Bronze" occur frequently across different base metals and electroplating methods. Develop a framework that accounts for these variations to maintain a cohesive design language throughout the space.
If you specify a solid brass door lever with a living finish, it will patina differently than a zinc-cast cabinet pull with a PVD coating, even if they look identical on day one. To mitigate this, request physical samples of all hardware finishes and view them together under the actual lighting conditions planned for the space. Sometimes, intentionally contrasting finishes—like matte black door hardware paired with satin brass cabinet pulls—yields a better result than attempting a near-match that ends up looking like a mistake.
Manipulating hardware in architectural software like Chief Architect or Revit presents technical realities. Users often face pain points when they cannot manually drag-and-drop hardware freely. Overcome these limitations by adjusting manual offset values in the properties panel. You can also import custom CAD symbols provided by the manufacturer. Utilizing the Appliance/Door/Drawer option within the Front panel of the Cabinet Specification dialog allows you to apply different styles to a single unit.
In Revit, hardware should be modeled as nested families within the door or cabinet family. This allows the hardware to move parametrically with the host element. If you change the door width, the lockset should automatically adjust its backset position. Ensure that the BIM objects you download from manufacturers are not overly complex. High-polygon models will bloat your project file and slow down rendering times. Strip the models down to their basic geometric representation (LOD 300) for coordination purposes.
Accurate 3D modeling prevents physical clashes on site. You must ensure door swings do not hit cabinet pulls, towel bars, or wall-mounted fixtures. Transitioning from a digital model to an automated hardware schedule eliminates manual data entry errors. This precision streamlines procurement and ensures the right components arrive on site.
Run clash detection protocols in Navisworks or similar software to identify conflicts early. A common clash occurs when a door swings open 90 degrees and the lever handle strikes a nearby cabinet drawer, preventing the drawer from opening fully. By modeling the hardware accurately, you can adjust the door swing, add a floor stop, or change the cabinet layout before construction begins. The schedule generated from the BIM model should include all relevant parameters: manufacturer, model number, finish, handing, and keying requirements.
Analyze the trade-offs of using a single manufacturer versus multiple vendors. A single source guarantees finish matching across all components and simplifies warranties. If a lock fails, you have one point of contact. However, sourcing specialized components from multiple vendors offers superior functionality and broader design options. You might want a specific high-security cylinder from one brand and a highly decorative lever from another.
Weigh these factors based on the specific demands of your project. For a large hospital, vendor consolidation is usually the best route to ensure maintenance simplicity. For a high-end custom home, best-in-breed sourcing allows for maximum design flexibility. If you choose to mix vendors, you must take on the responsibility of verifying mechanical compatibility. Will the decorative lever fit on the commercial mortise chassis? Does the spindle size match? These details require meticulous checking.
Compare PVD coatings, living finishes, and clear-coated metals. Physical Vapor Deposition offers exceptional long-term maintenance benefits, resisting scratches and tarnishing even in harsh coastal environments. Living finishes, like unlacquered brass, age naturally and develop a unique patina, but they require specific care and client education. Clear-coated metals degrade differently over time; once the lacquer chips, the underlying metal oxidizes rapidly, creating an uneven appearance.
Finish Type | Durability | Maintenance Requirement | Best Application |
|---|---|---|---|
PVD (Physical Vapor Deposition) | Extremely High | Low (Wipe with damp cloth) | High-traffic commercial, exterior doors |
Electroplated & Clear Coated | Medium | Medium (Avoid harsh chemicals) | Interior residential, light commercial |
Living Finish (Unlacquered) | Variable (Changes over time) | High (Polishing required if patina is unwanted) | High-end residential, historic restorations |
Assess how easily a chosen hardware suite scales across multi-phase developments. Standardizing hardware for franchise or corporate rollouts requires reliable supply chains. Ensure your selected components can be consistently sourced over long periods to maintain uniformity across multiple locations. If you specify a boutique hardware line for a national retail chain, you will likely face severe lead-time issues and discontinued products down the road. Stick to major manufacturers with proven production capacity for large-scale rollouts.
Custom hardware lead times can delay critical path millwork or door installation. Identify these risks early in the pre-construction phase. Propose mitigation strategies like phased scheduling. Early procurement of rough-in components, such as electrified hinges, power supplies, and mortise pockets, keeps the project moving while you wait for final decorative finishes.
Create a detailed procurement log that tracks submittal approval dates, manufacturing lead times, and expected delivery dates. Communicate constantly with the hardware supplier. If a specific finish is delayed, find out if the manufacturer can ship the internal mechanisms first so the doors can be secured, and ship the decorative trim later. This phased approach prevents the entire job site from coming to a standstill over a delayed shipment of levers.
Miscommunication between carpenters, electricians, and security integrators causes significant issues on site. Prevent this by using comprehensive hardware submittals that include wiring diagrams and installation templates. Physical mock-ups clarify design intent and establish a quality standard. Pre-installation meetings align all trades, ensuring everyone understands the integration requirements before work begins.
During the pre-installation meeting, review the hardware schedule line by line. Ensure the electrician knows exactly where to pull the low-voltage wire for the electrified strikes. Ensure the carpenter understands the blocking requirements for the heavy-duty closers. When trades communicate before the drywall goes up, you eliminate the need for destructive rework later.
Successful hardware coordination requires moving away from fragmented specification. You must adopt a holistic, digitally modeled systems approach that considers the entire lifecycle of the opening. Select hardware partners based on verified ANSI/BHMA grading, transparent finish specifications, robust BIM object libraries, and proven access-control compatibility.
Engage an Architectural Hardware Consultant (AHC) early in the schematic design phase to review complex openings.
Request physical finish samples across different base metals to verify consistency under actual site lighting conditions.
Audit your current BIM templates to ensure hardware accuracy, proper offset capabilities, and accurate parameter mapping.
Schedule a mandatory pre-installation coordination meeting with the general contractor, carpenter, electrician, and security integrator.
A: Focus on specifying base metals and standardized finishing processes like PVD. Do not rely solely on manufacturer color names, as "Satin Brass" can vary wildly between vendors. Request physical samples of all hardware and compare them side-by-side under the project's specified lighting conditions.
A: Place hardware at ergonomic pull heights, typically 40 to 42 inches above the floor for tall pantry doors. Center drawer pulls logically based on drawer width. Use oversized, heavy-duty pulls for integrated appliances like refrigerators to handle the suction gasket leverage without damaging the panel.
A: Detail power transfers and sequential access control logic for both doors. Never assume the secondary door automatically follows the primary door's behavior without specific wiring and relays. Coordinate closely with the electrical engineer to ensure proper power supplies and fire alarm integration.
A: Yes. Use the Appliance/Door/Drawer option on the Front panel of the Cabinet Specification dialog to apply different door and hardware styles to specific sections of a single cabinet. This allows for accurate 3D representation and scheduling of mixed hardware configurations.
A: Import custom symbols provided by the manufacturer, set precise offset values in the specification menus, or create user-defined CAD blocks to place hardware exactly where you need it. Ensure these custom blocks are tagged correctly so they populate the hardware schedule.
A: Architectural hardware meets strict ANSI/BHMA grading for commercial compliance, offers superior lifecycle durability, and provides extensive customization options. Builder's hardware is typically mass-produced for light residential use, lacks rigorous cycle testing, and offers limited finish and style options.
A: Hardware must meet operational force limits under 5 lbs for interior doors. It also requires specific graspability standards (no tight pinching or twisting), tactile warnings where required, and precise mounting heights (34 to 48 inches) to ensure accessibility for all users.
