Unmitigated equipment vibration carries significant operational, structural, and acoustic costs. Accelerated mechanical wear degrades machine components over time, while compromised precision leads to defective outputs and costly rework. Safety hazards emerge when unstable machinery shifts during operation. Furthermore, structure-borne acoustic disruption creates annoying, persistent noise in industrial, commercial, and residential spaces. Addressing these issues requires more than just placing soft materials under heavy loads.
Uneven flooring acts as a primary catalyst for resonance, rocking, and wobble. Concrete slabs, tiled surfaces, and gym floors rarely offer perfect flatness. When you place equipment on these imperfect substrates, standard static mounts and rigid bases fail. They leave microscopic gaps between the base and the floor. Under dynamic loads, these gaps allow the equipment to oscillate. This movement amplifies the kinetic energy, transferring destructive vibrations directly into the floor structure and back into the machine.

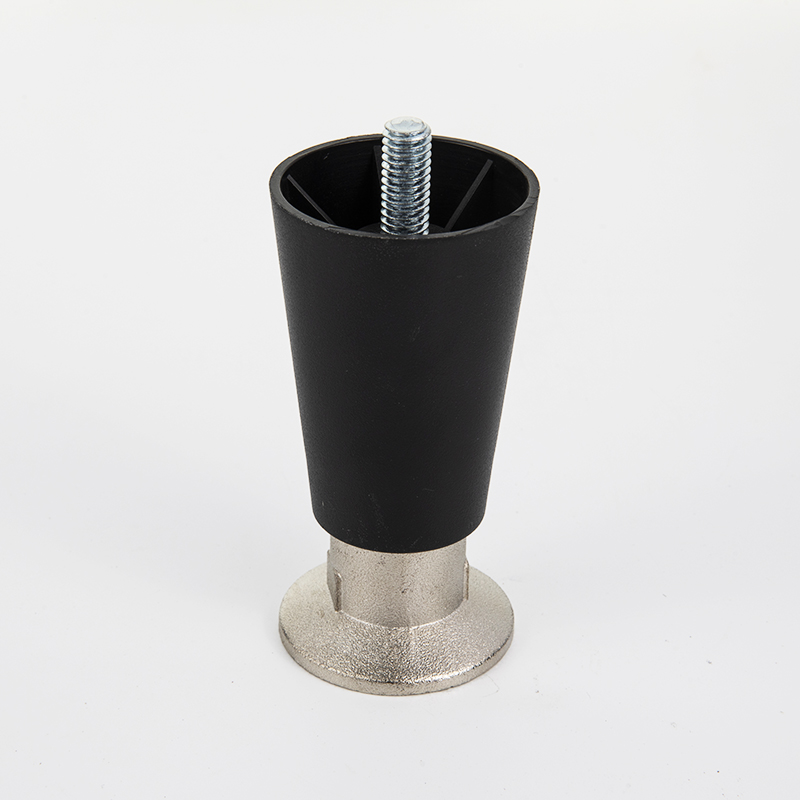

Engineered leveling systems provide a reliable solution to this core problem. The dual-functionality of a well-designed Adjustable Leg simultaneously corrects planar misalignment and isolates vibrational energy. By establishing flush, continuous contact with the ground, these components eliminate the micro-gaps that cause rocking. Combined with specialized dampening materials, they intercept kinetic energy before it transfers to the floor, ensuring long-term stability and noise reduction.
Dual-Action Mitigation: An adjustable leg eliminates the micro-gaps caused by uneven floors, ensuring 100% surface contact to prevent wobble-induced vibration amplification.
Material Selection is Critical: The base material of a leveling foot (e.g., vulcanized rubber, polyurethane, or multi-layered composite sandwich foam) dictates its specific vibration-damping frequency, acoustic noise attenuation, and load capacity.
Load Distribution: Proper calibration of adjustable legs prevents uneven weight distribution, which is a primary cause of localized resonance and premature equipment failure.
Acoustic Isolation: Unmitigated vibration translates directly into low-frequency noise; dampening at the contact point significantly lowers ambient decibel levels.
Integration over Band-Aids: Integrated leveling and dampening systems outperform standalone anti-vibration pads by addressing the root cause of instability rather than just temporarily masking the symptoms.
Defining the baseline for equipment stability is the first step in mitigating vibration. Success requires zero planar movement across the entire footprint of the machine. You must achieve acoustic noise mitigation to maintain a safe and comfortable environment. Finally, there must be a measurable reduction in transmitted kinetic energy. Meeting these criteria ensures the equipment operates within its designed tolerances without damaging itself or the surrounding structure. We look for absolute rigidity at the base level. If a machine operator can feel the floor vibrating ten feet away, the mounting system has failed. You need to isolate that energy right at the point of contact.
In field applications, achieving this baseline means evaluating the floor's topography before installing any hardware. A concrete slab poured ten years ago will have settled, creating dips and high spots. When you set a heavy lathe or a commercial washing machine on that slab, the rigid frame of the equipment cannot conform to the uneven surface. This mismatch is where the problems begin. The goal is to bridge that gap seamlessly, ensuring the machine frame remains perfectly level while the mounting feet adapt to the floor's irregularities.
Rigid mounts cannot adapt to floor topography. When you place a static machine mount or a standard Furniture Leg on uneven concrete, tile, or gym flooring, micro-gaps inevitably form. Physics dictates that dynamic forces will exploit these gaps. As the machine operates, it shifts its weight into the empty space, causing a rocking motion. This oscillation creates a feedback loop, amplifying resonance and causing the equipment to vibrate violently against the hard substrate.
Consider a high-speed centrifuge operating on a tiled floor. The tiles have grout lines and slight height variations. A rigid steel mount will sit on the high points, leaving gaps over the low points. As the centrifuge spins up, the unbalanced forces push the machine into those gaps. The steel mount slams against the tile, generating a shockwave. This shockwave travels back up into the centrifuge bearings, accelerating wear. It also travels down into the floor, creating a low-frequency rumble that disturbs the entire building. Rigid mounts simply transfer energy; they do not manage it.
Achieving continuous, flush contact with the floor disrupts the physical vibration feedback loop. When a mount sits perfectly flat against the substrate, there is no room for the equipment to rock. This solid connection prevents the initial wobble from occurring. By maintaining 100% surface contact, the kinetic energy distributes evenly across the base rather than concentrating on a single, unstable pivot point.
Continuous contact also maximizes the effectiveness of any dampening material used in the base. If a rubber pad only touches the floor on one edge, it cannot absorb vibration properly. The load concentrates on that small area, compressing the rubber beyond its functional limit and rendering it useless. When the entire surface of the pad engages the floor, the elastomeric material can compress and rebound as designed, dissipating the kinetic energy as trace amounts of heat. This full-surface engagement is the fundamental principle behind effective vibration isolation.
Mechanical designs for precision vibration control fall into distinct categories. Each design targets specific environmental challenges and load requirements. Understanding these mechanisms helps in selecting the appropriate hardware to stabilize dynamic loads on unpredictable surfaces. We generally categorize these solutions based on their adjustment method and base articulation. Selecting the wrong category often leads to stripped threads, crushed dampening pads, or persistent wobble.
The primary categories include light-duty threaded glides, heavy-duty machine mounts, and specialized hygienic feet. Light-duty glides work well for office desks and residential seating. Heavy-duty mounts handle industrial presses and CNC machinery. Hygienic feet feature sealed threads and smooth surfaces to prevent bacterial buildup in food processing plants. Each category utilizes different materials and thread pitches to achieve its specific goals.
Fine-pitch threaded stems allow for micro-millimeter height corrections. This precision enables accurate leveling across multiple contact points. By rotating the threaded shank, you can extend or retract the base until it meets the floor perfectly. This mechanism ensures that every corner of the equipment bears its designated share of the load, eliminating the imbalances that trigger vibration.
The thread pitch directly impacts the level of precision you can achieve. A coarse thread allows for rapid height adjustment but makes fine-tuning difficult. A fine thread requires more turns to change the height, but it provides exceptional control. When leveling a precision optical table, you need that fine control to achieve absolute flatness. Furthermore, fine threads offer better resistance to loosening under vibration, as the shallower thread angle creates more friction against the mating nut.
Fixed-base legs work best for flat floors that have a consistent, uniform slope. They provide a solid, unyielding connection. Conversely, articulating or swivel bases pivot on a ball joint. This pivoting action allows the base pad to maintain flat contact on highly irregular, sloped, or pitted surfaces. Articulating designs adapt to the exact angle of the floor, ensuring maximum surface area engagement.
If you install a fixed base on a floor with a localized dip, the edge of the base will dig into the floor while the rest of the pad hovers in the air. This point-loading damages the floor and compromises stability. An articulating base solves this by tilting to match the dip. The ball joint allows the threaded shank to remain perfectly vertical while the base pad angles itself to sit flush against the concrete. This adaptability makes articulating bases the preferred choice for older industrial facilities with heavily worn floors.
Mapping specific base and shank materials to their operational outcomes is necessary for effective vibration isolation. The materials you choose directly dictate the system's ability to absorb kinetic energy, resist environmental degradation, and support heavy loads. You cannot use a standard rubber pad in a machine shop where cutting fluids pool on the floor; the rubber will swell and degrade within weeks. You must match the material to the environment.
We evaluate materials based on their durometer (hardness), compression set (ability to rebound after loading), and chemical resistance. A high-durometer material supports more weight but transmits more high-frequency vibration. A low-durometer material isolates vibration better but may compress too much under heavy loads, leading to instability. Finding the right balance is key to successful implementation.
Vulcanized rubber excels at low-frequency vibration isolation. It provides a high-friction grip that prevents lateral machine drift during intense operation. Neoprene offers similar dampening qualities while adding resistance to minor oil and chemical exposure, making elastomeric bases highly versatile for general industrial use. These materials act like springs, absorbing the shock of a stamping press or the rhythmic thumping of a commercial washing machine.
However, natural rubber has limitations. It degrades when exposed to UV light, ozone, and petroleum-based solvents. If you are installing equipment in an outdoor setting or a heavy manufacturing environment, natural rubber will dry out, crack, and eventually fail. In these scenarios, synthetic elastomers like neoprene or nitrile rubber provide a much longer service life while maintaining excellent vibration-damping characteristics.
Composite foam layers target high-frequency dampening. They absorb the rapid, micro-vibrations that often translate into acoustic noise. Polyurethane bases provide extreme durability and resistance to harsh chemicals, oils, and solvents. They maintain their structural integrity in demanding environments where softer rubbers might degrade. Polyurethane is particularly effective in environments where heavy loads and lateral shear forces are present.
When you need to isolate a sensitive coordinate measuring machine (CMM) from the background vibrations of a factory floor, composite foam is often the best choice. The open-cell structure of the foam traps and dissipates the high-frequency energy before it can reach the machine bed. Polyurethane, on the other hand, is the go-to material for heavy material handling equipment. It resists tearing and abrasion, ensuring the leveling foot remains intact even if the equipment is dragged across rough concrete.
Multi-layered bases combine different materials to maximize performance. A rubber-foam-rubber sandwich targets multiple vibrational frequencies simultaneously. The outer rubber layers provide grip and low-frequency isolation, while the inner foam core absorbs high-frequency acoustic noise. This hybrid approach eliminates structure-borne noise highly effectively.
We often use these hybrid designs in commercial HVAC installations. A large rooftop chiller unit generates both low-frequency rumble from the compressor and high-frequency whine from the fans. A single-material pad cannot effectively isolate both. The sandwich design tackles the entire frequency spectrum. The bottom rubber layer grips the roof curb, the foam core absorbs the fan whine, and the top rubber layer isolates the compressor rumble. This comprehensive isolation prevents the noise from traveling down into the building's structure.
The threaded components must withstand immense stress. Carbon steel offers high tensile strength for heavy load-bearing limits, making it suitable for dry indoor environments. Stainless steel provides excellent corrosion resistance, essential for washdown areas, outdoor applications, or environments with high humidity and chemical exposure. Choosing the wrong metal leads to catastrophic failure.
If you use carbon steel shanks in a food processing plant, the daily chemical washdowns will cause the threads to rust rapidly. Within a few months, the rust will seize the threads, making future height adjustments impossible. Eventually, the rusted shank will snap under the dynamic load of the machinery. In these environments, 304 or 316 stainless steel is mandatory. While stainless steel has a slightly lower tensile strength than high-grade carbon steel, its ability to resist corrosion ensures the leveling system remains functional and safe for years.
Base Material | Vibration Frequency Focus | Environmental Resistance | Ideal Application |
|---|---|---|---|
Vulcanized Rubber | Low-Frequency | Moderate (Water, Dust) | General Machinery, Fitness Equipment |
Polyurethane | Mid-Frequency | High (Oils, Chemicals) | Harsh Industrial Environments |
Composite Foam Sandwich | High-Frequency & Acoustic | Moderate | Precision Instruments, Residential Appliances |
Neoprene | Low to Mid-Frequency | Good (Mild Oils, Ozone) | HVAC Units, Commercial Pumps |
Matching the leg to the specific environment ensures long-term stability. Different settings demand unique performance characteristics from their leveling systems. You cannot apply a one-size-fits-all approach to vibration mitigation. A solution that works perfectly for a residential washing machine will fail instantly under a five-ton injection molding machine.
Heavy Industrial Machinery: Requires high-load capacity, chemical resistance, and severe vibration isolation to protect sensitive components.
Commercial & Fitness Spaces: Needs rock-solid stability on uneven rubber flooring to prevent heavy treadmills or spin bikes from wobbling dangerously.
Residential Furniture & Appliances: Utilizes an adjustable base to eliminate annoying washing machine spin-cycle vibrations and bed or armchair rocking.
Laboratory Equipment: Demands extreme precision leveling and high-frequency isolation to ensure accurate readings from sensitive scales and microscopes.
To determine the required load rating per leg, you must account for both the static weight and the dynamic forces. Calculate this by taking the total machine weight, adding the maximum dynamic force generated during operation, and dividing that sum by the total number of legs. Always multiply the final number by a safety factor (typically 1.25 to 1.5) to ensure the mounts can handle unexpected stress spikes without failing.
For example, if you have a CNC mill that weighs 8,000 lbs and generates 2,000 lbs of dynamic downward force during heavy cutting, your total load is 10,000 lbs. If the machine has four mounting points, each leg must support 2,500 lbs. Applying a 1.5 safety factor means you should select a leveling foot rated for at least 3,750 lbs. Ignoring the dynamic force and the safety factor is a common mistake that leads to crushed dampening pads and bent threaded shanks.
Heavier equipment requires larger thread diameters to prevent shearing under vibrational stress. Standard sizes like M12, M16, or M20 offer the necessary thickness to support massive loads. A finer thread pitch allows for more precise height adjustments, which is critical when leveling highly sensitive equipment that requires exact planar alignment.
The length of the threaded shank also matters. You need enough length to bridge the gap caused by the uneven floor, but excessive length introduces lateral instability. If you extend an M12 shank three inches out of the base, it acts like a lever arm. When the machine vibrates laterally, that long, thin shank will flex, amplifying the wobble. Always choose the shortest shank length that still allows for proper leveling. If the floor is extremely uneven, consider pouring a concrete housekeeping pad rather than relying on excessively long leveling feet.
Thread Size (Metric) | Typical Static Load Capacity (lbs) | Common Applications |
|---|---|---|
M8 / M10 | 100 - 500 | Light Furniture, Small Appliances, Retail Displays |
M12 / M16 | 500 - 2,500 | Commercial Gym Equipment, Workbenches, Conveyors |
M20 / M24 | 2,500 - 10,000+ | CNC Machinery, Injection Molders, Heavy Presses |
Specific environments dictate strict selection criteria. Washdown areas in food processing require FDA-compliant hygienic leveling feet made of stainless steel to prevent bacterial growth. Electronics manufacturing facilities necessitate ESD-safe bases to dissipate static electricity safely into the ground. Ignoring these environmental requirements can lead to severe safety violations and equipment damage.
In a cleanroom environment, you cannot use standard rubber bases because they outgas volatile organic compounds (VOCs) and shed particulate matter as they wear. You must use specialized, cleanroom-rated elastomers or solid stainless steel mounts. Similarly, in a facility handling flammable solvents, you must ensure the leveling feet do not create sparks if the equipment shifts. Understanding the specific regulatory and safety requirements of your environment is just as important as calculating the load capacity.
Evaluating vibration mitigation strategies requires looking at installation ease and long-term efficacy. While standalone pads might seem like a quick fix, integrated systems often provide superior stability and require less maintenance over the lifespan of the equipment. We constantly see facilities trying to save money by sliding cheap rubber squares under their machinery, only to spend ten times that amount repairing damaged bearings and cracked concrete floors.
You have to consider the labor involved in maintaining the setup. Standalone pads tend to walk out from under the equipment over time due to vibration. Maintenance teams have to constantly lift the heavy machinery with pry bars to reposition the pads. This is dangerous and time-consuming. Integrated systems bolt directly to the machine frame. Once you set them and lock them down, they stay in place, eliminating this ongoing maintenance burden.
Placing foam or rubber pads under a standard, non-adjustable leg often fails on uneven floors. The pad absorbs some shock, but it does not correct the planar misalignment. If the floor dips beneath one corner, the equipment will still wobble on top of the pad. The root cause of the instability remains unaddressed, leading to continued vibration.
Furthermore, standalone pads rely entirely on the weight of the machine to hold them in place. If the machine generates significant lateral forces, it will simply slide off the pad. We see this frequently with commercial washing machines. The aggressive spin cycle creates massive lateral loads. If the machine is just sitting on rubber squares, it will walk across the laundry room floor. You need a mechanical connection between the machine and the dampening material to prevent this lateral movement.
An integrated Leveling Foot combines height adjustment with a bonded anti-vibration base. This design ensures precise level alignment while providing structural isolation. By fixing the wobble and dampening the vibration at a single, secure contact point, integrated systems deliver unmatched stability and long-term performance.
The bonding process is critical here. High-quality integrated feet use industrial adhesives or mechanical interlocks to permanently attach the elastomeric pad to the metal base. This prevents the pad from delaminating or tearing away under heavy shear loads. When you install an integrated system, you are creating a unified structural component that handles vertical loads, lateral forces, and vibration dampening simultaneously. This holistic approach is the only reliable way to stabilize dynamic machinery on uneven surfaces.
Before installing any leveling system, you must map the floor topography. Identify the maximum variance points and slopes. Understanding the exact nature of the uneven surface allows you to determine if you need fixed or articulating bases and how much thread length will be required to bridge the gaps. Grab a long straightedge and a precision level. Sweep the area where the machine will sit. Mark the high and low spots directly on the concrete.
If you find a variance of more than an inch across the machine's footprint, you need to rethink your approach. Relying solely on the threaded shanks to bridge a gap that large will introduce severe lateral instability. In these cases, you may need to use steel shim plates under the leveling feet at the lowest points to reduce the required thread extension. Proper assessment prevents you from pushing the hardware beyond its safe operating limits.
Proper installation guarantees optimal performance. Follow a strict protocol to ensure stability. Rushing this process always leads to poor results. Take your time, use accurate measuring tools, and verify your work at every step.
Start with all adjustable legs fully retracted to establish a consistent baseline.
Lower all legs until they make light, uniform contact with the floor.
Gradually adjust one corner at a time, moving in a diagonal progression to maintain balance.
Iteratively check equipment stability and planar level across multiple axes after each micro-adjustment to prevent rocking.
Lock the adjustment tightly using jam nuts against the equipment base to prevent thread back-out caused by continuous vibration.
Over-extending the threaded shank introduces lateral weakness. If the thread is extended too far, it acts like a lever, increasing vibration and risking structural failure. Ensure the load distributes evenly across all points. Uneven load distribution forces one leg to bear too much weight, leading to premature wear and localized resonance.
Another common error is failing to tighten the jam nut properly. The jam nut is what locks the threaded shank to the machine frame. If you leave it loose, the vibration of the machine will cause the shank to slowly rotate. Over weeks or months, the leg will retract itself, reintroducing the wobble you worked so hard to eliminate. Use two wrenches: one to hold the shank steady and another to torque the jam nut down hard against the frame. This mechanical lock is essential for long-term stability.
Mitigating equipment vibration on uneven floors requires a structural approach. Combining precise height calibration with advanced dampening materials addresses the root cause of instability. Superficial fixes like standalone pads cannot correct planar misalignment. By evaluating floor variance, calculating dynamic loads, and selecting the appropriate base materials, you ensure long-term equipment health and a quieter environment.
Take the following steps to secure your equipment:
Audit your current machinery and appliances for visible wobble or excessive noise during operation.
Measure the slope variance of your floor to determine if articulating bases are necessary.
Calculate the total dynamic load of your equipment to select the correct thread size and load rating.
Consult manufacturer spec sheets to match the base material to your specific vibration frequency and environmental needs.
Implement a strict installation protocol, ensuring all jam nuts are torqued to specification to prevent loosening.
A: Load capacities vary drastically based on material and thread size. Light-duty furniture legs typically support around 50 lbs each. Heavy-duty industrial leveling feet, utilizing thick steel shanks and dense polyurethane bases, can exceed 10,000 lbs per point.
A: Articulating bases are required for floors with localized pitting, complex slopes, or severe irregularities because they pivot to maintain flat contact. Fixed bases work perfectly for flat floors or surfaces with a consistent, uniform incline.
A: Pads absorb shock but do not fix the planar misalignment causing the wobble. If the floor is uneven, the equipment will still rock on the pads. An adjustable leg is required to bridge the gaps and level the machine.
A: You must secure the threaded shank by tightening a locking nut or jam nut firmly against the equipment base. This prevents the threads from backing out or shifting during continuous dynamic operation.
A: Composite foams and hybrid rubber-foam sandwich pads excel at absorbing high-frequency micro-vibrations. Specific durometer polyurethanes also perform well. These materials dampen acoustic noise much better than hard plastics or bare metal.
A: Add the total machine weight to the maximum operational dynamic load. Divide that sum by the total number of legs. Finally, multiply that number by a 1.25 safety factor to ensure adequate structural support.
A: They eliminate the dangerous rocking of heavy cardio or strength training machines on uneven rubber gym floors. By ensuring flush contact, they protect the subfloor from damage and provide a safe, stable experience for the user.
